Mapping Christ the Redeemer: Pix4D and Aeryon Labs create the first high-resolution 3D model of one of the world’s most recognized monuments

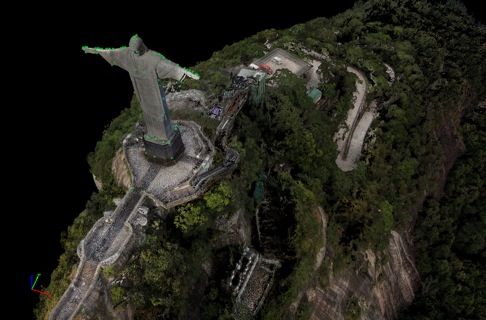

Point cloud of Christ and surrounding area, including manual tie points.

Pix4D, together with Aeryon Labs Inc. and PUC University of Rio de Janeiro, reconstructed the first accurate 3D model of Brazil’s most important monument: the Christ the Redeemer statue in Rio de Janeiro. Using the Aeryon UAV platform for data acquisition and Pix4D’s image processing software for the 3D reconstruction, the project team surmounted various challenges to acquire the high-resolution images needed for the model.

The Christ the Redeemer statue is Brazil’s most important monument. Located atop the 700 meter Corcovado Mountain the Christ statue towers over Rio de Janeiro, at 38 meters of height and with a 28 meter arm span. Accurate 3D reconstruction has not been possible until today because technologies, such as LiDAR, cannot scan the complete statue due to its size, location, difficult accessibility and challenging weather conditions. All previous 3D models and replicas of the statue have been designed by hand.

The NEXT Lab of PUC University in Rio de Janeiro contacted image processing technology leader Pix4D to determine if a 3D reconstruction could be achieved using both image processing technology and Unmanned Aerial Vehicles (UAVs) for data acquisition. Pix4D took on the challenge, collaborating with UAV leader Aeryon Labs Inc. for data acquisition and PUC’s NEXT Lab for project logistics, including special permission to fly UAVs at the Christ the Redeemer heritage site. Safe operation around visitors and the statue itself was the most important aspect of the project: this is why the highly reliable, rugged Aeryon quad rotor aerial platform was chosen as the operational UAV.

Close up of 3D mesh.

“This project took years of waiting by the NEXT lab team and many months of planning and collaboration across several time zones to pull the technologies together in Rio,” commented Dave Kroetsch, Aeryon’s President and CEO. “We are pleased to have participated and that the Aeryon UAV platform was instrumental in creating the first accurate 3D model of the Christ the Redeemer monument.”

Data was collected for six consecutive mornings, on-site in late October. The main challenges for the data acquisition were the changing weather and wind conditions, restricted hours for data acquisition (flights could only take place before and after visiting hours) and inconsistent lighting conditions (shadows in early morning and late afternoon). A total of 3’584 images were acquired during 19 ten-minute flights.

2’090 images were used in Pix4Dmapper Pro desktop software to convert them into the 3D model. The reconstruction was divided into three main projects (statue, base and surrounding area) and nine-sub-projects to help manage the variations in image capture. Signal reflectance was one of the many challenges faced and affected the geotag accuracy; as a result, the sub-projects were processed without geotags. Eighty-two manual tie points were required to merge all sub-projects, while Pix4Dmapper’s point editing tools and annotating feature were used to crop out background points, such as the sky. Finally, a linear measurement, taken onsite by the project team, was used to provide the correct scale for the final result.

“Creating the first ever accurate 3D model of such a renowned statue with our software is a great way to showcase how image processing technology can achieve results that traditional technologies haven’t been able to produce,” said Christoph Strecha, CEO and Founder of Pix4D. “With its intricate detail, the statue was also a perfect structure to test out our new 3D textured mesh.”

The final 3D model, available both as a point cloud of 134.4 million points (97.6 million for the statue, 30.7 million for the terrace and 6.1 million for the surroundings) and as a full 3D textured mesh of 2.5 million triangles with a texture of 16384px x16384px, will be used and presented by PUC University for upcoming projects in the near future.

Discover the 3D model on Sketchfab:

Read the full White Paper:

About Pix4D
Founded in 2011 with over ten years of leading scientific research, Pix4D has become the main provider and industry standard for professional unmanned aerial vehicle (UAV) processing software. Started as a spin-off of EPFL in Switzerland, Pix4D is a dynamic and rapidly expanding company with headquarters in Lausanne, Switzerland and local offices in San Francisco, USA and Shanghai, China.

Pix4D develops and distributes its proprietary software called Pix4Dmapper that allows the conversion of thousands of terrestrial and aerial images taken by lightweight UAV or aircraft into georeferenced orthomosaics, DSMs, DTMs and point clouds, full 3D textured meshes and simplified CAD models. With its advanced automatic aerial triangulation based purely on image content and unique optimization techniques, Pix4Dmapper offers survey-grade accuracy and features a fully automatic workflow.

About Aeryon Labs Inc.
Aeryon Labs is the premier manufacturer of small Unmanned Aerial Systems (sUAS) which are at the center of major world events and international media stories. The company is the trusted partner of civil and military customers, resellers, and other commercial business partners around the globe. Aeryon Labs is a Canadian Controlled Private Company with headquarters in Waterloo, Ontario, Canada. Field-tested and mission-proven, Aeryon sUAS set the standard for immediate aerial intelligence gathering by anyone, anywhere, anytime, for a wide range of military, public safety and commercial applications.
