Bathymetric lidar takes a major step up with new Leica Chiroptera-5

The new sensor provides 40% higher point density, a 20% increase in water depth penetration, and improved topographic sensitivity.

The need to map coastal areas with precision is one of growing urgency. With a majority of the world’s population located within 20 miles of a coastline, the needs for accurate mapping span everything from safety to transportation to infrastructure, as well as ecological purposes.

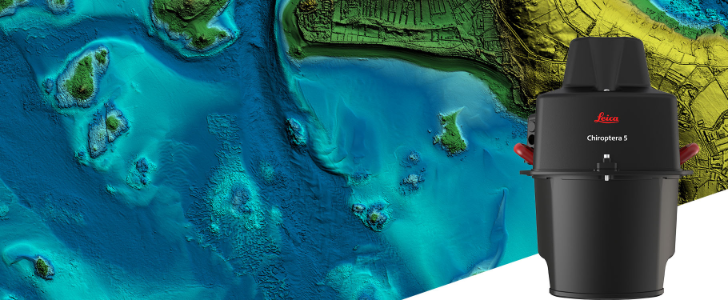

Leica Geosystems, part of Hexagon, have announced a new sensor that increases the clarity and performance of bathmetric lidar. The Leica Chiroptera-5 is a new high-performance airborne lidar sensor developed for use with coastal and inland water surveys.

This latest mapping technology increases the depth penetration, point density and topographic sensitivity of the sensor compared to previous generations. The new system delivers high-resolution LiDAR data supporting numerous applications such as nautical charting, coastal infrastructure planning, environmental monitoring as well as landslide and erosion risk assessments.

Enabling better surveys in less time

Chiroptera-5 combines airborne bathymetric and topographic LiDAR sensors with a 4-band camera to collect seamless data from the seabed to land. Thanks to higher pulse repetition frequency (PRF), the new technology increases point density by 40% compared to the previous generation system, collecting more data during every survey flight. Improved electronics and optics increase water depth penetration by 20% and double the topographic sensitivity to capture larger areas of submerged terrain and objects with greater detail. The high-performance sensor is designed to fit a stabilising mount, enabling more efficient area coverage which decreases operational costs and carbon footprint of mapping projects.

Leica Geosystems’ signature bathymetric workflow supports the sensor’s performance. Introducing near real-time data processing enables coverage analysis immediately after landing, allowing operators to quality control the data quickly before demobilising the system. The Leica LiDAR Survey Studio (LSS) processing suite provides full waveform analysis and offers automatic calibration, refraction correction and data classification, as well as advanced turbid water enhancement.

Expanding bathymetric application portfolio to support environmental research

Combining superior resolution, depth penetration and topographic sensitivity, Chiroptera-5 provides substantial benefits for various environmental applications like shoreline erosion monitoring, flood simulation and prevention and benthic habitat classification.

Bundled with the FAAS/EASA certified helicopter pod, the system enables advanced terrain-following flying paths for efficient river mapping and complex coastlines surveys. Owners of previous generation systems are offered an easy upgrade path to Chiroptera-5 to add capabilities to their existing sensor and leverage their initial investment.

“The first generation Chiroptera airborne sensor was flown in 2012. During its ten years of operation, the system has seen constant evolution that continuously improved the productivity and efficiency of the entire bathymetric surveying industry,” says Anders Ekelund, Vice President of Airborne Bathymetry at Hexagon.

“By collecting detailed data of coastal areas and inland waters, Chiroptera-5 provides an invaluable source of information that supports better decision making, especially for environmental monitoring and management, in line with Hexagon’s commitment to a more sustainable future.”
